BRP106C, 11.6 ton Capacity, 150 mm Stroke, Pull Hydraulic Cylinder
BRP-Series Single-Acting Hydraulic Pull Cylinders are ideal for heavy duty pulling applications. They easily attach to the application with the included replaceable links or lugs.
Collapsed Height A
601 mm
Extended Height B
751 mm
Our experts will contact you within 24 hours.
Product Description
BRP-Series Hydraulic Pull Cylinders include replaceable links or lugs which allow for easy attachment to the pulling application. These are a single-acting spring return design, and feature plunger blow-out protection and a corrosion resistant hard chrome-plated plunger.

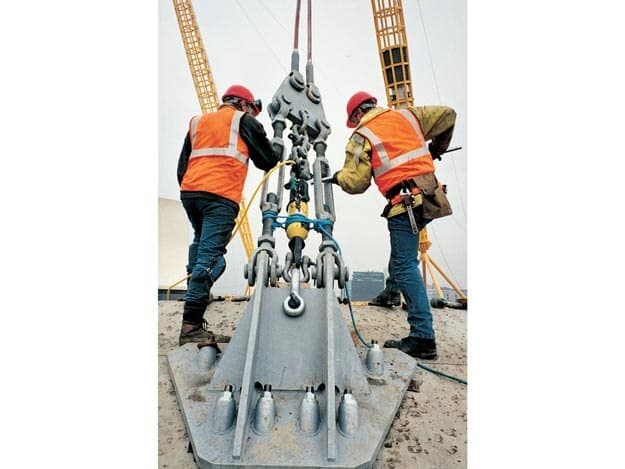

Typical applications include cable and bar tensioning or other pulling applications.
Every Enerpac BRP Series Pull Cylinder for sale is rated for 10,000 psi (700 bar) and fully complies to ASME B30.1
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links
Technical Specifications
| Parameter | Value |
|---|---|
| Collapsed Height A | 601 mm |
| Extended Height B | 751 mm |
| Stroke | 150 mm |
| Weight | 15,3 kg |
| Coupler | CR400 Coupler |
| Material | Steel |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Solid |
| Capacity Class | 10 t |
| Surface Treatment | Paint |
| Maximum Operating Pressure | 700 bar |
Product Dimensions
