Enerpac|Workholding Cylinders

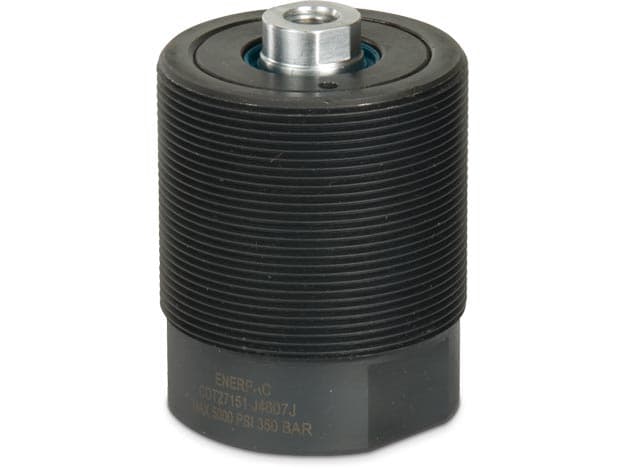

CDT27502, 26,9 kN Capacity, 49,7 mm Stroke, Double-Acting, Threaded Body, Hydraulic Cylinder
SKU: CDT27502
Stroke
49.7 mm
Weight
1,8 kg
Our experts will contact you within 24 hours.
Technical Specifications
| Parameter | Value |
|---|---|
| Stroke | 49.7 mm |
| Weight | 1,8 kg |
| Return Type | Double-Acting, Hydraulic Return |
| Oil Capacity Advance | 39,35 cm³ |
| Maximum Operating Pressure | 350 bar |
| Cylinder Effective Area Advance | 7,87 cm² |
| Maximum Cylinder Capacity Advance | 26,9 kN |
Product Dimensions
Dimension
mm
in
