Enerpac|Workholding Cylinders

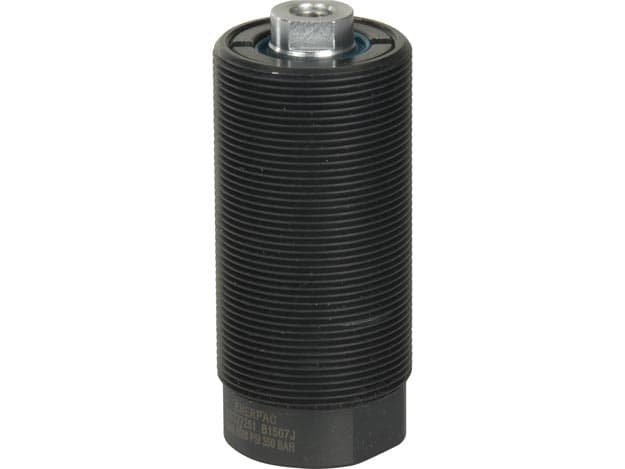

CST27502, 26,9 kN Capacity, 50,0 mm Stroke, Single-Acting, Threaded Body, Hydraulic Cylinder
SKU: CST27502
Stroke
50 mm
Weight
1,3 kg
Our experts will contact you within 24 hours.
Technical Specifications
| Parameter | Value |
|---|---|
| Stroke | 50 mm |
| Weight | 1,3 kg |
| Return Type | Single-Acting, Spring Return |
| Oil Capacity Advance | 39,40 cm³ |
| Maximum Operating Pressure | 350 bar |
| Cylinder Effective Area Advance | 7,88 cm² |
| Maximum Cylinder Capacity Advance | 26,9 kN |
Product Dimensions
Dimension
mm
in
