Enerpac|Jacks

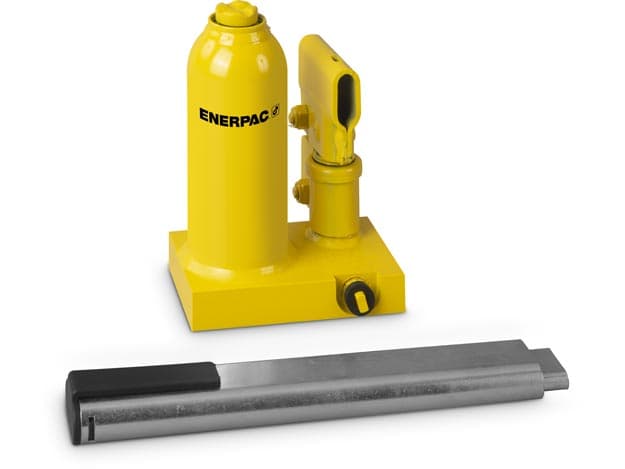

GBJ003A, 3 Ton, 105 mm Stroke, Hydraulic Industrial Bottle Jack
SKU: GBJ003A
Capacity (kN)
29,4
Stroke (mm)
105
Our experts will contact you within 24 hours.
Product Description
- Pump swivels for ease of use, improved ergonomics
- Lower handle effort reduces operator fatigue
- Safety relief valve to prevent overload
- Automatic by-pass port to prevent over-extension
- High-strength beam and pump linkage for long life
- Thick base material with large area for increased strength and stability during lifting
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity (kN) | 29,4 |
| Stroke (mm) | 105 |
| Collapsed Height (mm) | 168 |
| Extended Height (mm) | 338 |
| Weight (kg) | 3,7 |
| Oil Capacity (cm³) | 90 |
| Base Dimensions (mm) | 75 x 116 |
| Saddle Diameter (mm) | 23,5 |
| Screw Extension (mm) | 65 |
| Plunger Diameter (mm) | 24 |
Product Dimensions
Dimension
mm
in
Stroke
105
4.13
