Enerpac|Jacks

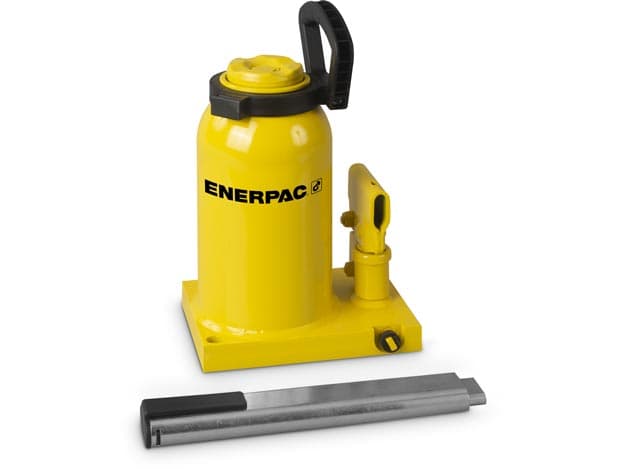

GBJ020A, 20 Ton, 150 mm Stroke, Hydraulic Industrial Bottle Jack
SKU: GBJ020A
Capacity (kN)
196,0
Stroke (mm)
150
Our experts will contact you within 24 hours.
Product Description
- Positioning handle included
- Pump swivels for ease of use, improved ergonomics
- Telescopic handle stores compactly on the jack
- Lower handle effort reduces operator fatigue
- Safety relief valve to prevent overload
- Automatic by-pass port to prevent over-extension
- High-strength beam and pump linkage for long life
- Thick base material with large area for increased strength and stability during lifting
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity (kN) | 196,0 |
| Stroke (mm) | 150 |
| Collapsed Height (mm) | 234 |
| Extended Height (mm) | 459 |
| Weight (kg) | 10,6 |
| Oil Capacity (cm³) | 525 |
| Base Dimensions (mm) | 120 x 172 |
| Saddle Diameter (mm) | 61,0 |
| Screw Extension (mm) | 75 |
| Plunger Diameter (mm) | 51 |
Product Dimensions
Dimension
mm
in
Stroke
150
5.91
