Enerpac|Cylinders

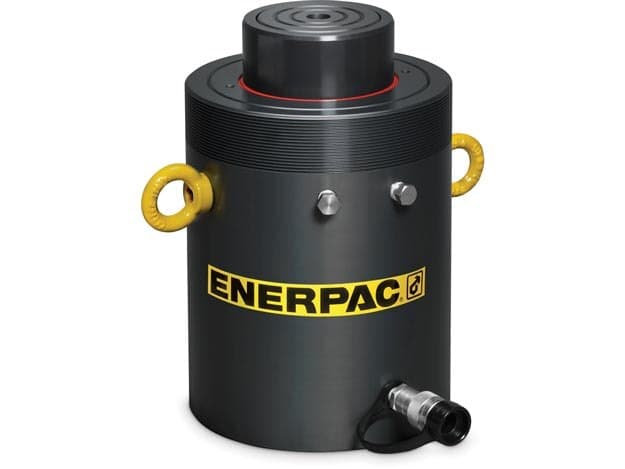

HCG1006, 113 ton Capacity, 150 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
SKU: HCG1006
Collapsed Height A
302 mm
Extended Height B
452 mm
Our experts will contact you within 24 hours.
Product Description
HCG Series Hydraulic Cylinders are the single-acting load return option from the industry-proven Enerpac high-tonnage range. As with all of our high-tonnage cylinders, included are a multitude of special features inside and out, to deliver the increased levels of durability, safety, and performance vital for large-scale construction projects. Among these features are low-wear high pressure seals, replaceable composite plunger support bearings, and a tough nitrocarburized finish on the cylinder body and the plunger.
Technical Specifications
| Parameter | Value |
|---|---|
| Collapsed Height A | 302 mm |
| Extended Height B | 452 mm |
| Stroke | 150 mm |
| Weight | 46 kg |
| Coupler | CR400 Coupler |
| Material | Steel |
| Return Type | Single-Acting, Load Return |
| Plunger Type | Solid |
| Capacity Class | 100 t |
| Surface Treatment | Nitride |
| Oil Capacity Advance | 2147 cm³ |
| Maximum Operating Pressure | 700 bar |
| Cylinder Effective Area Advance | 143,1 cm² |
| Maximum Cylinder Capacity Advance | 1002 kN |
Product Dimensions
Dimension
mm
in
