Enerpac|Manual Pumps

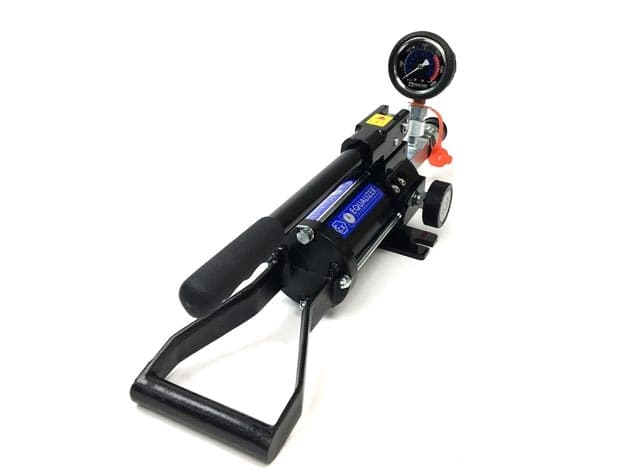

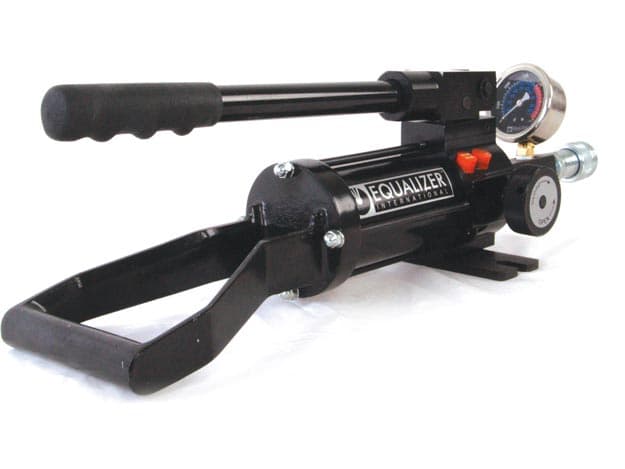

HP350SMINEX, Two Speed, Single Port, Hydraulic Sealed Hand Pump with Gauge and Adaptor, ATEX Certified
SKU: HP350SMINEX
Weight (kg)
4,9
Power Source
Manual
Our experts will contact you within 24 hours.
Product Description
- Single Port hand pumps are used for actuating one single-acting cylinder.
- The HP350S pump has been designed with hazard reduction, safety and ease of use in mind. It can be used for operating any 10,000 psi (700 bar) rated hydraulic equipment with an oil capacity of 21.4in3 (350cc) or less and as with other Equalizer pumps it can be used in any orientation as well as on- or offshore.
- ATEX Certified Tools are designed for use in potentially explosive atmospheres and to conform with the EU directive 2014/34/EU.
- The HP350SMINEX Set is ATEX Certified and Includes:
1 x HP350S Pump Unit
1 x 10,000 psi (700 bar) Gauge
1 x 3/8†Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging
Technical Specifications
| Parameter | Value |
|---|---|
| Weight (kg) | 4,9 |
| Power Source | Manual |
| Max Pressure (bar) | 690 |
| Flow at Rated Pressure | 0,77 cm3/zdvih |
| Reservoir Capacity (cm³) | 300 |
| Usable Oil Capacity (cm³) | 300 |
Product Dimensions
