MS210, 5 ton, Hydraulic Cylinder and Hand Pump Set with 35 Cylinder Attachments

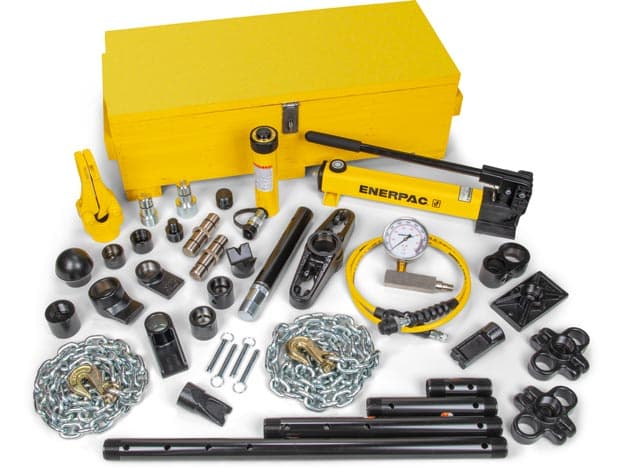

The MS210 Maintenance Set allows you to complete a wide range of maintenance tasks. This versatile set features an RC106 10 ton hydraulic cylinder, 35 cylinder attachments, and the lightweight 2-speed P392 hand pump.
Capacity (kN)
50
Collapsed Height (mm)
247
Our experts will contact you within 24 hours.
Product Description
This hydraulic pump and cylinder set includes a complete assortment of accessories allowing you to configure a unique tool to solve a wide range of difficult maintenance tasks.
The set includes the RC106 Hydraulic Cylinder, which when used with attachments allows you to exert a force of 5 tons (50kN) and a stroke of 6.13" (156mm). Ideal when you need to push, pull, lift, press, straighten, spread, or clamp.
Also included is the lightweight P392 2-speed hydraulic hand pump, hose, gauge, A92 spreader attachment, lock-on or threaded connectors, and a storage crate.
Safe Operation
When using hydraulic cylinders with maintenance set attachments or components, the maximum system pressure must be limited to half of the rated pressure (5,000 psi / 350 bar). When not using attachments, the tonnage and pressure capacities are double these values.
Only use attachments provided with the set. Using non-Enerpac attachments and longer extension tubes could reduce column strength - potentially creating unsafe conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity (kN) | 50 |
| Collapsed Height (mm) | 247 |
| Pump Type | Hand Pump |
| Weight (kg) | 63 |
| Max Pressure (bar) | 350 |
Product Dimensions
