Enerpac|Tensioners

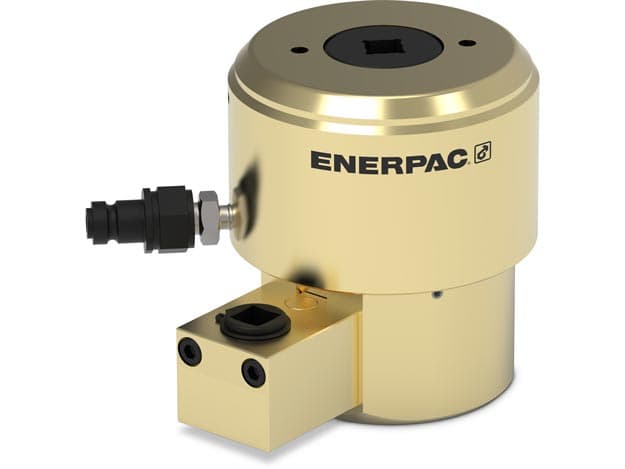

PGTS3655S, Single Stage, Hydraulic Power Generation Bolt Tensioner, 1.42 in Bolt Diameter, M36 Tensioner Size, 2.17 in Nut A/F
SKU: PGTS3655S
Capacity (kN)
670,1
Weight (kg)
6,4
Our experts will contact you within 24 hours.
Product Description
- PGT-Series Bolt Tensioners are designed for critical fastening applications in wind, steam and gas turbines
- A broad range of single stage and double deck tensioners provide high performance in tight spaces associated with Power Generation applications
- PGT-Series Bolt Tensioners are loaded with performance enhancing features such as Auto-Retract Pistons, Cycle Counters and a premium coating to offer the ultimate in efficiency, durability and ease of use.
- Auto-retract piston: Simplifies use and improves speed of operation.
- Long-life puller: For maximum durability.
- Long-life seals: For maximum durability and extended service life intervals.
- Corrosion protection: Zinc coating provides best-in-class corrosion resistance.
- Interchangeable bridge: For optimal application fit.
- Over-stroke preventer: Mechanically prevents over-stroke, extending cylinder life.
- Over-stroke indicator: Extends cylinder life by helping to prevent over-stroking of cylinder.
- Optional counter: Helps indicate when maintenance is due to maximize uptime.
- Quick-disconnect coupler: For safe, simple hydraulic connection.
- Optional 360° swivel: available for additional hose positioning flexibility.
- Spring-loaded nut engagement: Keeps socket positioned on nut for faster and easier seating process.
- Auto-engage nut rundown: For rapid and accurate seating of nuts.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity (kN) | 670,1 |
| Weight (kg) | 6,4 |
| Bolt Diameter | 36 |
| Max Pressure (bar) | 1500 |
Product Dimensions
Dimension
mm
in
Stroke
9
0.35
A
111
4.37
B
90
3.54
C
56
2.19
D
128
5.04
E
95
3.75
