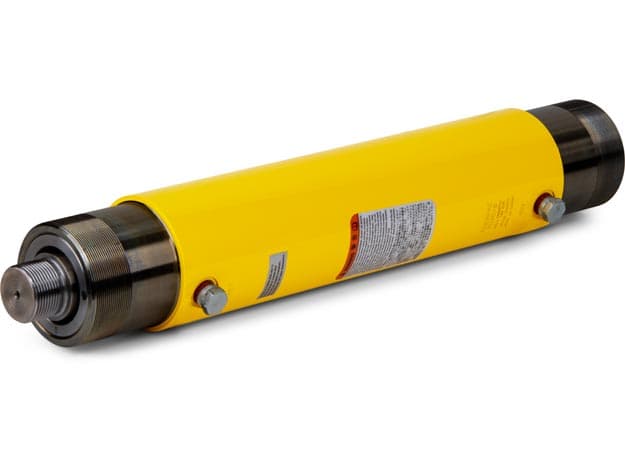

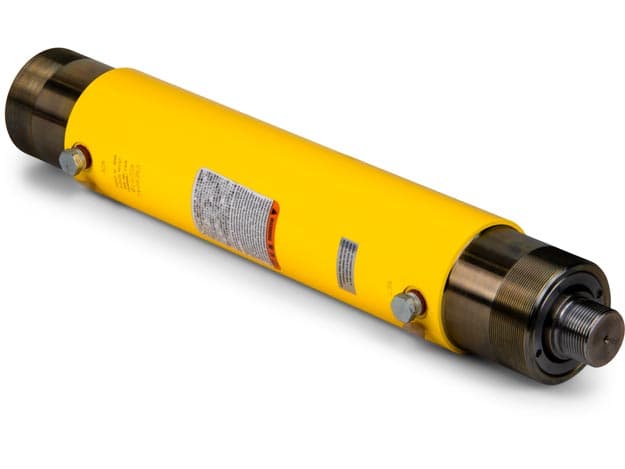

RD2510, 25 ton Capacity, 260 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder
SKU: RD2510
Collapsed Height A
526 mm
Extended Height B
786 mm
Our experts will contact you within 24 hours.
Product Description
- Designed for long life, the best choice for production applications
- Unique mounting configurations simplify fixturing
- Baked enamel finish for increased corrosion resistance
- Double-acting operation develops force in both directions, providing maximum versatility
- Plunger wiper reduces contamination, extending cylinder life
Technical Specifications
| Parameter | Value |
|---|---|
| Collapsed Height A | 526 mm |
| Extended Height B | 786 mm |
| Stroke | 260 mm |
| Weight | 20,3 kg |
| Material | Steel |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Capacity Class | 25 t |
| Surface Treatment | Paint |
| Oil Capacity Advance | 824 cm³ |
| Maximum Operating Pressure | 700 bar |
| Cylinder Effective Area Advance | 31,7 cm² |
Product Dimensions
Dimension
mm
in
Collapsed Height A
526
20.69
Extended Height B
786
30.94
Outside Diameter D
92
3.63
Cylinder Bore Diameter E
63,5
2.5
Plunger Diameter F
47,8
1.88
Base to Advance Port H
85
3.5
Top to Retract Port I
—
3.5
Saddle Protrusion K
—
1.08
Plunger Thread Length P
25
1
Plunger External Thread Q
1 1/2" - 12
1 1/2" - 12
Collar Thread W
3 1/4" - 16
3 1/4" - 16
Collar Thread Length X
29
1.13
