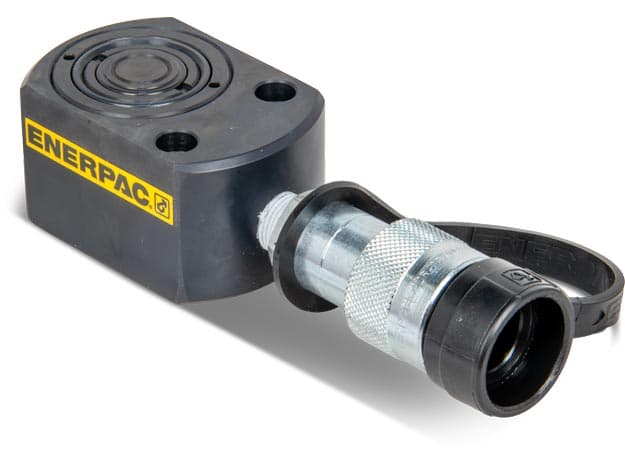

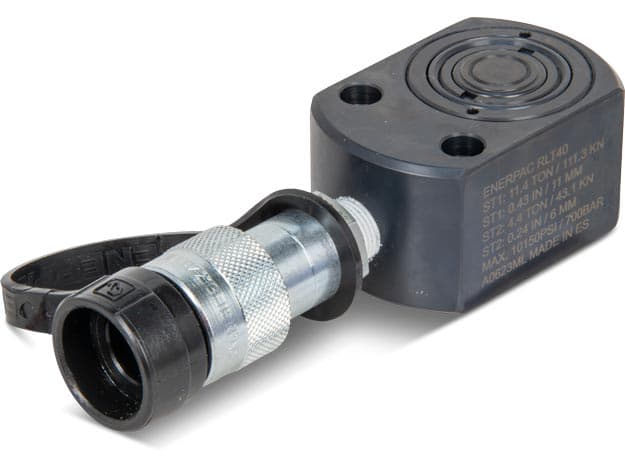

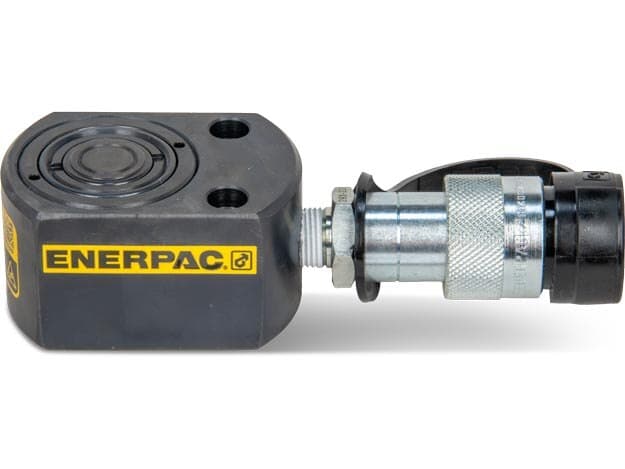

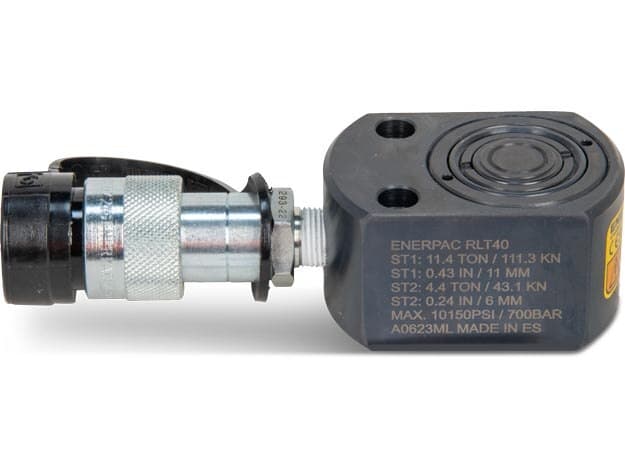

RLT40, 4.8 ton Capacity, 17 mm Stroke, Low Height Multi-stage, Telescopic Hydraulic Cylinder
SKU: RLT40
Collapsed Height A
45 mm
Extended Height B
62 mm
Our experts will contact you within 24 hours.
Product Description
- Single-Acting, load return
- Nitrocarburization surface treatment for improved load and wear resistance and corrosion protection
- The longer stroke length of telescopic cylinders will save you time and simplify projects by moving a load a greater distance and eliminating the use of temporary cribbing.
- For use in confined spaces: machinery positioning, tool fastening
- Mounting bolt holes for easy fixturing
- Up to 3% side-load of maximum capacity
- Design safety factor complies with ASME B30.1 & EN1494
- CR400 coupler for compatibility with standard product
- High-Alloy steel for maximum strength
- 1st Stage: maximum load capacity at lower stroke.
- 2nd Stage: extended stroke with lower capacity than the 1st stage.
- Final Stage: maximum stroke extension with lowest capacity.
Technical Specifications
| Parameter | Value |
|---|---|
| Collapsed Height A | 45 mm |
| Extended Height B | 62 mm |
| Stroke | 17 mm |
| Weight | 1,8 kg |
| Coupler | CR400 Coupler |
| Material | Steel |
| Return Type | Single-Acting, Load Return |
| Plunger Type | Telescopic |
| Capacity Class | 5 t |
| Surface Treatment | Nitride |
| Oil Capacity Advance | 21 cm³ |
| Maximum Operating Pressure | 700 bar |
| Maximum Cylinder Capacity Advance | 43 kN |
Product Dimensions
Dimension
mm
in
Collapsed Height A
45
1.77
Extended Height B
62
2.44
Outside Diameter D
83 x 56
3.27 x 2.20
Plunger Diameter F
25
—
Base to Advance Port H
20
0.79
