Enerpac|Gantries

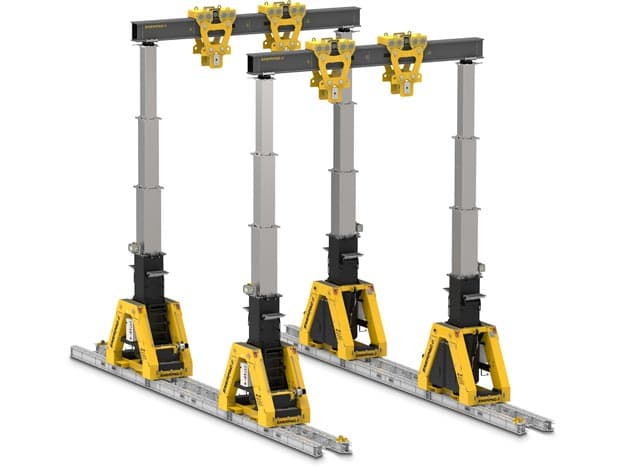

SBL600W, 674 Ton, Hydraulic Gantry, 400 V, 3 ph, 50 Hz, EU Plug
SKU: SBL600W
Applications
Lift, Lower, Transport
Max Lifting Height
10600 mm (34.78 ft)
Our experts will contact you within 24 hours.
Technical Specifications
| Parameter | Value |
|---|---|
| Applications | Lift, Lower, Transport |
| Max Lifting Height | 10600 mm (34.78 ft) |
| Max Capacity (4 legs) | 612 t (6000 kN) |
| Weight per Leg (with oil) | 9000 kg (19,842 lbs) |
Product Dimensions
Dimension
mm
in
A – Retracted Height
4300
169.32
B Stage 1 – Lift Height
6500
255.96
B Stage 2 – Lift Height
8600
338.64
B Stage 3 – Lift Height
10600
417.36
C – Base Height
2250
88.58
D – Base Length
3270
128.74
E – Base Width
1642
64.65
F – Track Gauge
914
36
G – Beam Plate
400
15.75
H – Beam Plate
490
19.29
I – Transport Height
2250
88.56
J – Transport Width / Beam Plate
4012
157.92
