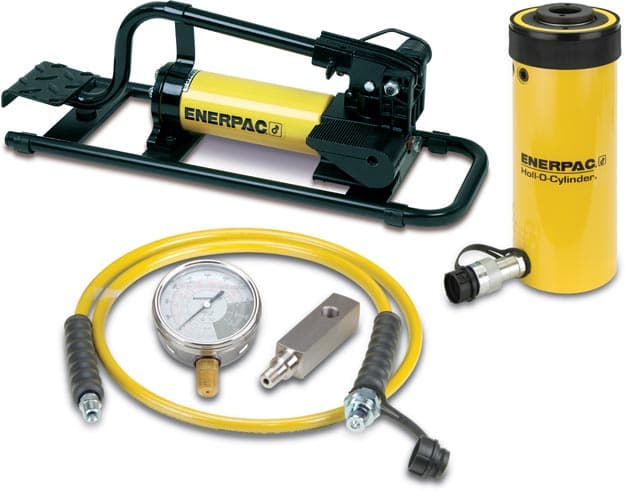

SCH302FP, 30 Ton, 64 mm Stroke, Hollow Hydraulic Cylinder and Foot Pump Set
This SCH Series porta power kit is a ready-to-use hydraulic cylinder and pump set featuring a hollow RCH Cylinder for both pulling and pushing applications.
Capacity (kN)
326
Collapsed Height (mm)
178
Our experts will contact you within 24 hours.
Product Description
A hydraulic cylinder and pump set (porta power) provides a quick and easy way to get everything you need for a wide range of pulling, lifting, and pushing applications.
Included in this kit is an RCH single-acting hollow hydraulic cylinder. The hollow bore design of the cylinder includes collar threads for easy fixturing. RCH models over 20 tons (218 kN) include a nickel-plated floating center tube to reduce side load damage and to increase product life. Provided with the cylinder is a two-speed pump, a 6-foot hose, a calibrated gauge, and a gauge adaptor.
Configure your ideal kit by choosing from a range of 12 - 100 ton (125 - 933 kN) cylinders to suit your application. Your hydraulic pump can be selected from a wide choice of manual, air, or cordless options.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity (kN) | 326 |
| Collapsed Height (mm) | 178 |
| Pump Type | Foot Pump |
| Max Pressure (bar) | 700 |
