Enerpac|Jacks

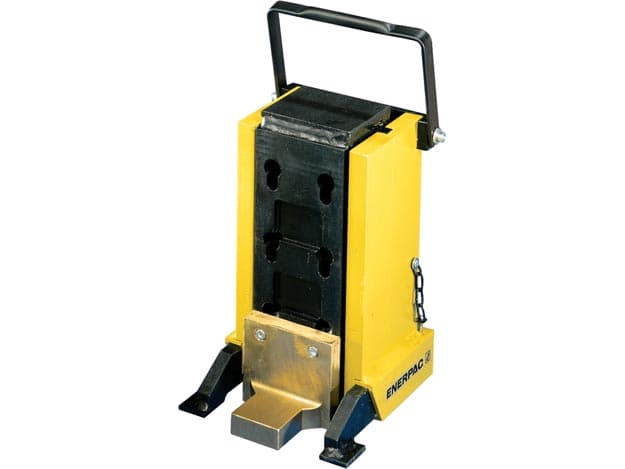

SOH236, 20 Ton, 157 mm Stroke, Hydraulic Machine Lift
SKU: SOH236
Capacity (kN)
178
Stroke (mm)
157
Our experts will contact you within 24 hours.
Product Description
Toe Jacks such as the SOH236 are purpose-designed for lifting heavy items such as factory machinery. The SOH236 includes a 1.18" (30 mm) low height lifting toe to fit into small clearance gaps. This is raised using the integral hydraulic cylinder. When used in combination with loads skates, toe jacks provide a safe and effective solution for moving heavy machinery around a facility.
Technical Specifications
| Parameter | Value |
|---|---|
| Capacity (kN) | 178 |
| Stroke (mm) | 157 |
| Weight (kg) | 45 |
| Oil Capacity (cm³) | 525 |
Product Dimensions
Dimension
mm
in
Stroke
157
6.18
F
65
2.56
H
265
10.24
J
250
9.84
K
80
3.15
Need technical consultation?
Our team of engineers is ready to help you choose the right product or design a custom solution for your specific needs.
