Enerpac|Bolting Flange Spreaders
SWi2025TESTDSPB, 26.9 Ton, External Hydraulic Flange Spreader Standard Set, 4.1 in Maximum Spread
SKU: SWi2025TESTDSPB
The Equalizer SWi2025TESTDSPB Standard Flange Spreader Set includes a spreader wedge head, hydraulic cylinder, hydraulic hand pump, hose, and safety block. The spreader fits into clearance gaps of 0.24" (6 mm).
Height (mm)
152
Length (mm)
312
Our experts will contact you within 24 hours.
Product Description

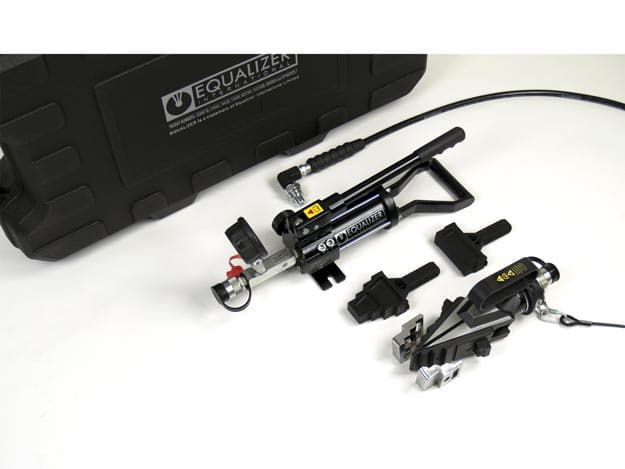

This standard Equalizer set includes a flange spreader, hydraulic cylinder, sealed hydraulic hand pump with gauge, safety block and lanyard - all are supplied within the robust carry case.
The hydraulic spreader used with the supplied hand pump makes it easy to exert a powerful force for separating flanges.

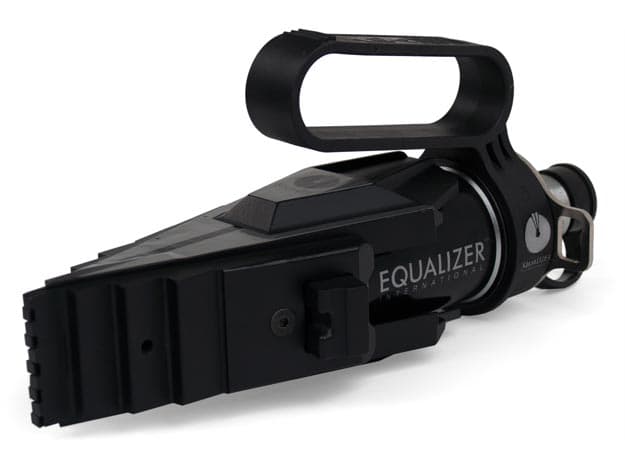

Standard Set Includes- 1 x SWi20/25TE Flange Spreader Wedgehead
- 1 x 10,000 psi Hydraulic Cylinder
- 1 x Safety Block
- 1 x Lanyard
- 1 x 1 x 10,000 psi (700 bar) Hydraulic Hose, 78.8" (2 m) with 90 degree elbow
- 1 x 10,000 psi (700 bar) HP350S Single-Port Sealed Hand Pump with Gauge
- Case dimensions (in) 26.8 x 22 x 7.1
- Practical, portable and lightweight
- Molded plastic handle for comfort
- Revolving handle to aid horizontal or vertical spreading
- Removable handle for improved access
- No finger pinch-points
- Increased step depth on upper steps
- Safety lanyard - 39 inches (1 m) length
- Forged key components for strength and reliability
- Rapid disassembly and assembly
- Narrow jaw teeth - improved tool wear
Technical Specifications
| Parameter | Value |
|---|---|
| Height (mm) | 152 |
| Length (mm) | 312 |
| Weight (kg) | 20.7 |
| Max Spread (mm) | 103.5 |
| Max Pressure (bar) | 700 |
Product Dimensions
Dimension
mm
in
Maximum Spread
103.5
4.1
Case
920 x 500 x 205
36.2 x 19.7 x 8.1
