Split-Flow Pump Kit for Single SFP-Pump in Multiple-Point Synchronous Lifting Operation

Connecting Split-Flow Pumps for more lift points and greater accuracy

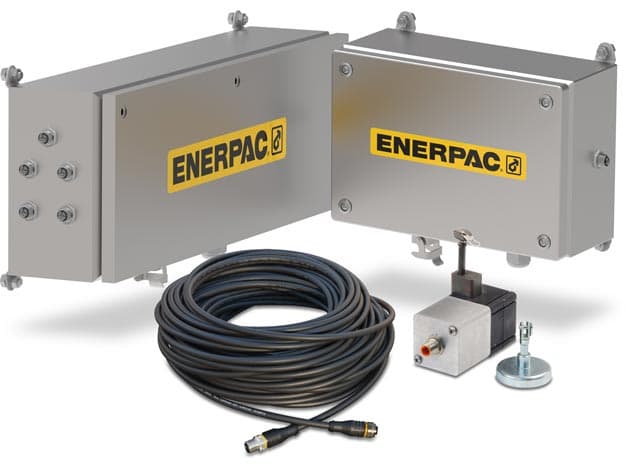

SFP Series kits are customized from standard components to meet the needs of your unique applications. Split-Flow Pump Synchro Kits connect and electronically synchronize each lift point of a single Split-Flow Pump under one control system.

Upgrading Split-Flow Pumps

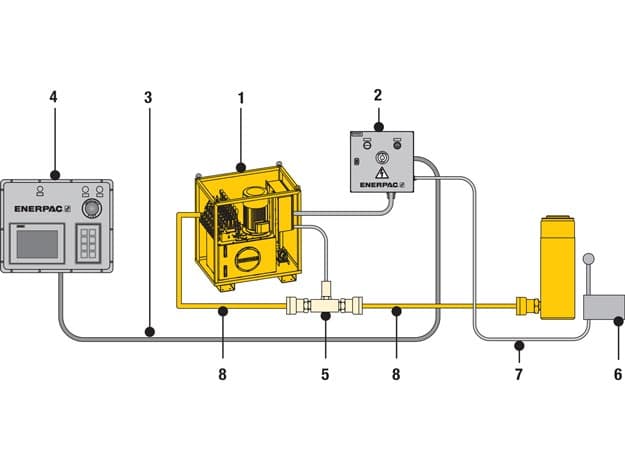

To upgrade a single SFP-pump to synchronous lift capability, see drawing and table.

1 - 1x SFP...SW Pump with solenoid valves
2 - 1x SFPKSS4 Junction Box for 2-4 lifting points or SFPKSS8 for 6-8 lifting points
3 - 1x SFPCOMM-25 Communication Cable
4 - 1x SFPSSC Single Slave Control Box
5 - SFPKPT Pressure Transducer Kit (1x per cylinder A-port)
6 - EVO-WSS-XXX Stroke Sensor, 1x per cylinder
7 - EVO-SC-25 Stroke Sensor Cable, 1x per cylinder
8 - HC-700-Series, Hydraulic Hoses

• Pumps can be closer to the lifting points, requiring shorter hoses and increasing accuracy
• Synchronize all lift points to within 0.04 inch (1.0 mm)
• Network control boxes expand the number of lifting points by combining up to four split-flow pumps together, simplifying lifting operations by using a single operator station
• Plug and play synchronous lift upgrade kits limit initial investment and provide everyday flexibility to tailor the controls to the applications needs
