Enerpac|Torque Wrench Pumps

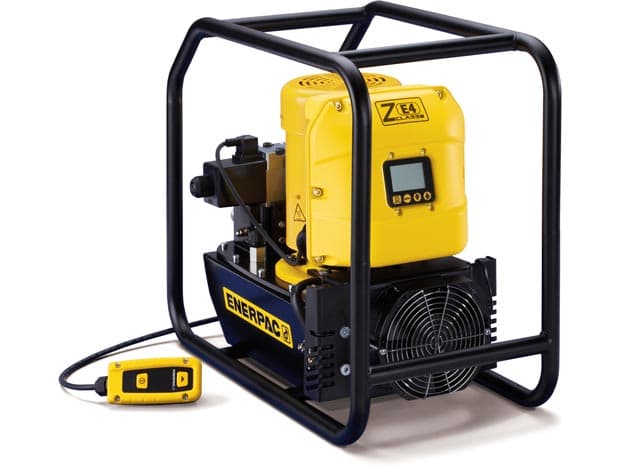

ZE4208TI-EHR, Electric Hydraulic Torque Wrench Pump, LCD Display, 230V, For use with SQD & HXD Series Wrenches
SKU: ZE4208TI-EHR
Weight (kg)
61
Power Source
Electric
Our experts will contact you within 24 hours.
Product Description
- Auto cycle feature provides continuous cycle operation of the torque wrench as long as the advance button is pressed (Pump can be used with or without auto cycle feature)
- LCD readout provides pressure and torque display and a number of diagnostic and readout capabilities never before off ered on a portable electric pump
- Totally enclosed, fan-cooled industrial electric motors supply extended life and stand up to harsh industrial environments
- High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh environments
- Includes heat exchanger and roll cage
Technical Specifications
| Parameter | Value |
|---|---|
| Weight (kg) | 61 |
| Power Source | Electric |
| Valve Operation | Manual |
| Max Pressure (bar) | 800 |
| Flow at Rated Pressure | 0,8 l/min |
| Reservoir Capacity (cm³) | 8000 |

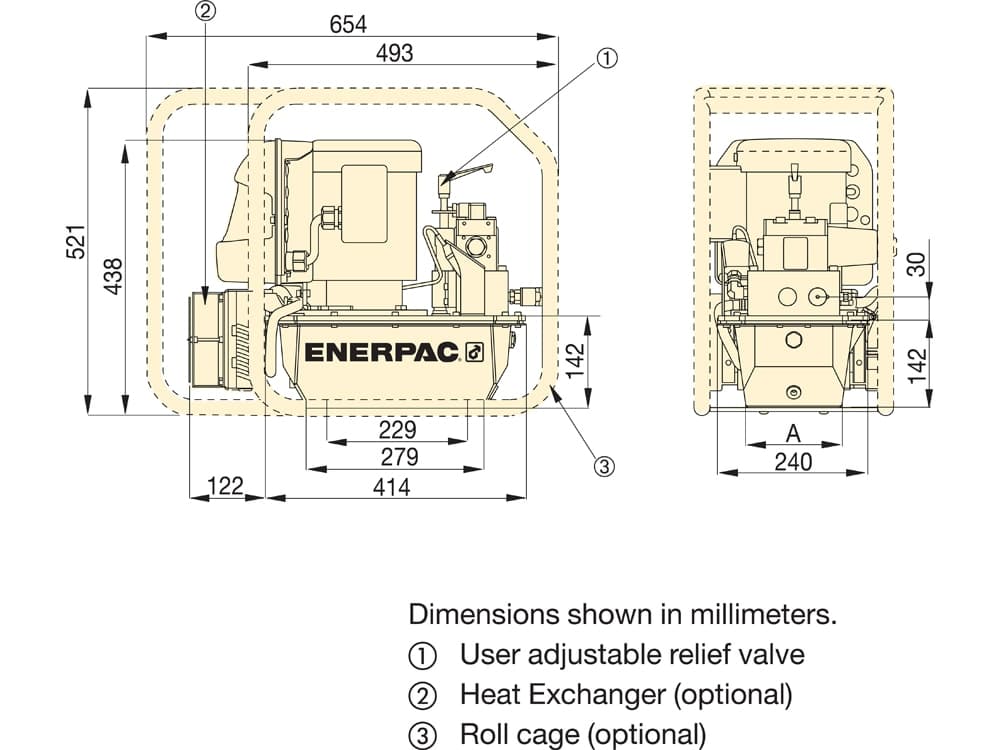

Product Dimensions
Dimension
mm
in
A
25.4
8.1
