Enerpac|Hydraulic Presses

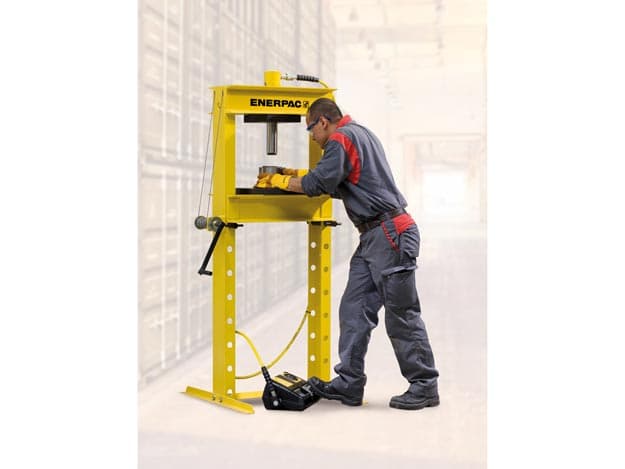

XLP256XA11GU, 25 Ton, Workshop Hydraulic Press with RC256 Single-Acting Cylinder and XA11G Air Pump
SKU: XLP256XA11GU
Weight
170 kg (375 lbs)
Capacity
25 t (232 kN)
Our experts will contact you within 24 hours.
Product Description
- The 25-ton XLP features a sturdy welded H-frame, an adjustable bolster and a horizontally adjustable cylinder.
- Easy height adjustment with integrated winch mechanism
- Horizontal cylinder adjustment enables flexible load placement
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 170 kg (375 lbs) |
| Capacity | 25 t (232 kN) |

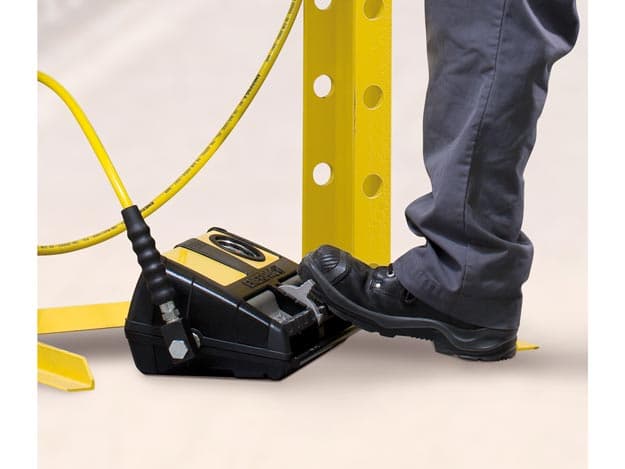

| Pump Model | XA11G |
| Cylinder Type | Single-Acting |
| Max Bed Width | 510 mm (20.08 in) |
| Pressing Speed | 1,3 mm/s (0.05 in/s) |
| Cylinder Stroke | 159 mm (6.25 in) |
| Power Source Type | Air |
| Power Source Valve | Manual |
| Rapid Advance Speed | 10,0 mm/s (0.39 in/s) |
| Max Vertical Daylight | 1211 mm (47.68 in) |
| Max Operating Pressure | 700 bar (10000 psi) |
Product Dimensions
Dimension
mm
in
B
140
5.51
D
32
1.26
E
510
20.08
F
630
24.8
G
710
27.95
H
1620
63.78
J
1705
67.13
K
357-1211
14.06-47.68
N
218
8.58
